3.5 Inch TFT LCD Display 320x480 Resolution ST7796U Driver

Name: 35 Inch TFT LCD Display 320x480 Resolution ST7796U Driver
Brand: Genyu
Price: 9.60 USD

Quality 3.5 Inch TFT LCD Display 320x480 Resolution ST7796U Driver for sale

Place of Origin : Guangdong, China

Brand Name : Genyu

MOQ : 500

Price : $9.60-10

Display Size : 3.5 inch

Resolution : 320*480

Display Mode : TFT/Transmissive

Module Size : 54.46(H)*82.94(W)*2.2(T)mm

Panel Area : 48.96(H)*73.44(W) mm

Viewing Angle : 12 O'Clock

Drive IC : ST7796U

Operating Temperature : -20~+70℃

Storage Temperature : -30~+80℃

Backlight Type : LED

Display Type : TFT

Screen Size : 3.5 INCH

Driver IC : ST7796U

Module Thickness : 2.2 mm

Active Area : 48.96 x 73.44 mm

Contact Now

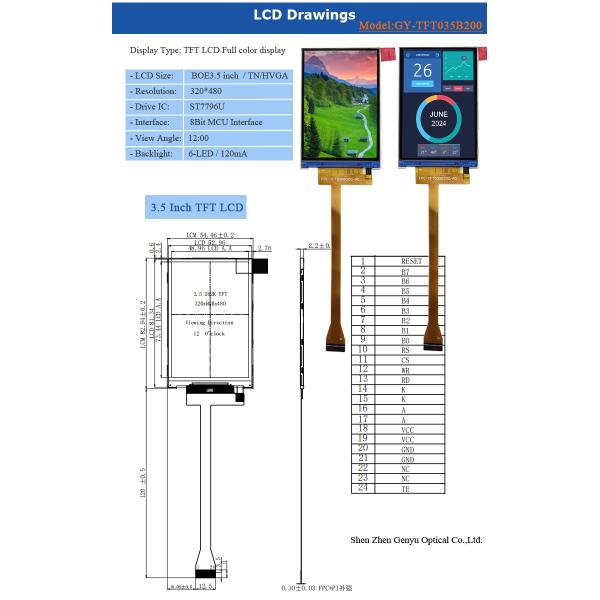

3.5 Inch TFT LCD Display 320x480 Resolution ST7796U Driver

LCD Size	3.5 inch
Resolution	320*480
Display Mode	TFT/Transmissive
Module Size	54.46(H)82.94(W)2.2(T)mm
Panel Active Area	48.96(H)*73.44(W) mm
viewing angle	12 O'Clock
Drive IC	ST7796U
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃

Established in 2003, Shen Zhen Genyu Optical Co.,Ltd. mainly R&D, production and sales of LCD display、OLED and TFT LCD Module. Professional customized LCD Screen (including TN、HTN、STN、FSTN、VA（BTN）)、COG and COB LCD Modules

Genyu's plant area is about 30000 square meters and has 1,000 employees, including 36 technicians, 16 developers and 60 QC. It has a core team of high-quality talents including LCD experts, LCD process engineers, LCM R&D engineers, B / L and FPC engineers. By virtue of modern automation plant equipment, advanced technology and a strong R&D team, we have made

We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements, At present, the annual production capacity of the factory has reached 100 million LCD screens, 30 million LCMS and 40 million B / L.

Air shower

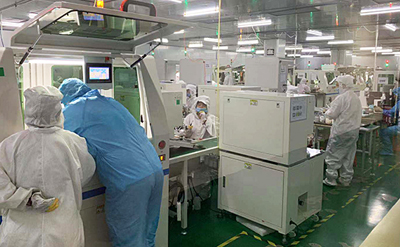

Nearly 6000 square meters of dust-free workshop, with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance of workshop is equipped with air shower, which can effectively and rapidly remove dust, hair, hair chips and other sundries attached to clothes, and reduce the pollution problems caused by personnel entering and leaving the workshop.

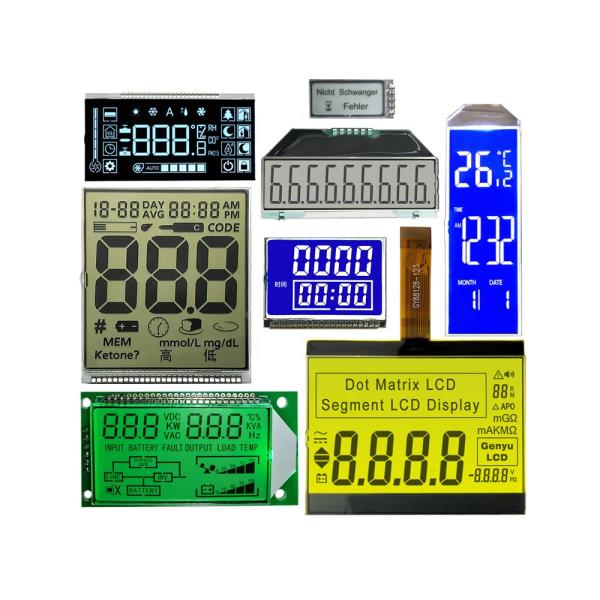

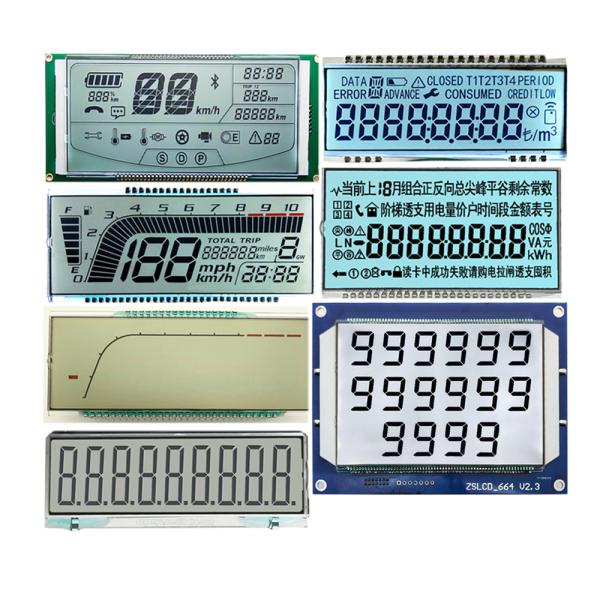

1. Custom Segment LCD display

Genyu has produced tens of thousands of segment LCDs. Please tell us your requirements for LCD, we will recommend similar LCD for you, or design LCD according to customer's requirements. Genyu has TN STN HTN FSTN VA/BTN LCD display,

Erica Tan

Tel: 0755-27856531 Mobile: +86-15919421997 Wechat: 15919421997 Skype: live:gyerica_1 Http:www.genyulcm.com E-mail:Erica@szgenyu.com

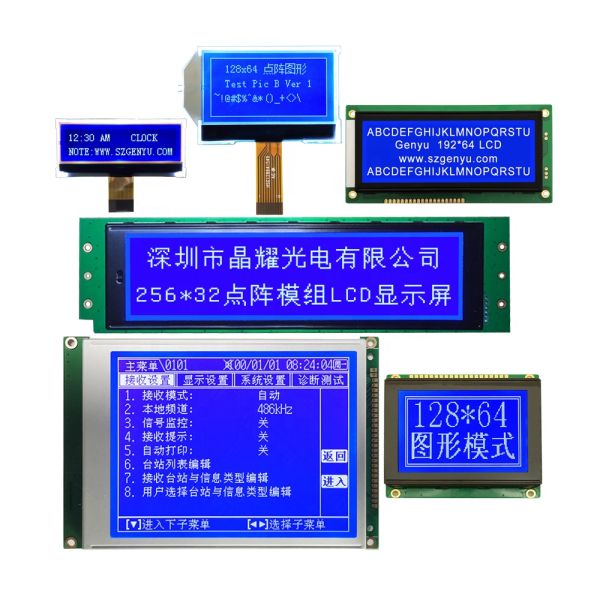

2. Dot Matrix Graphic LCD display

Genyu has 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128,160x160....320x240 dot matrix LCD display.

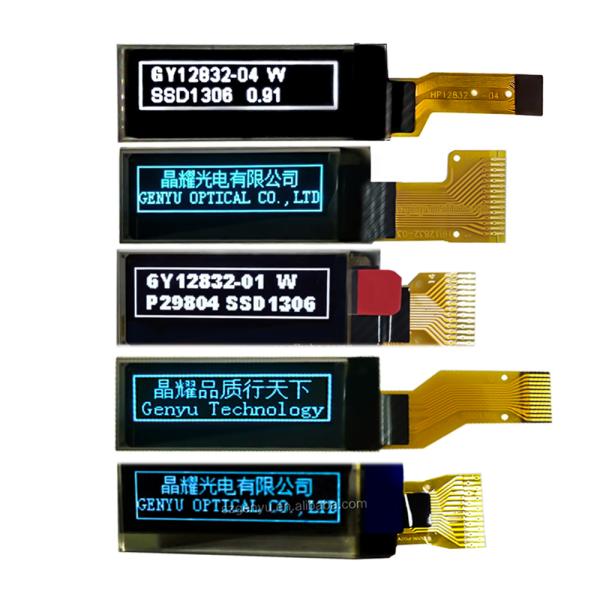

3. AMOLED display

Genyu has mini size OLED Display, 0.42" 0.49" 0.66" 0.78" 0.87" 0.91" 0.96" 1.3" 1.54" 2.08" 2.3" 2.4" OLED Display

4. TFT LCD display

Genyu has HD Full color TFT LCD Display, 0.91" 1.0" 1.28" 1.3" 1.44" 1.54" 1.77" 2.0" 2.2" 2.4" 2.8" 2.95" 3.13" 3.2" 3.5" 4.3" 7" 10.1" TFT LCD Display

-Standard size -Standing stock -Samples available

Wide range of applications

> Wearable Device

> Medical

> Financia

> Industrial

> New Enery

> Communication

> Instrumentation

LCD Display

All products have to pass strict inspection before packaging.

Plastic Containers

Each COG LCD product has a custom Plastic Containers. Professional blister Containers can fix each piece of LCD products.

Cartons

Carton size: 398 x 331 x 430 mm

The weight is about 17 KG.

Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
